Iconic Crush LM Bateman
Iconic Crush LM Bateman

Iconic Crush

    Please Call Us on 01233 820240

    Alternatively, please complete the contact form below and we'll respond as soon as possible.

    Please tick here to confirm you agree to our Privacy Policy by submitting your information

    The Iconic Cattle Crush has been two years in the design, and manufacturing process, and we believe it successfully fulfils the requirements of all cattle farmers in its ability to safely secure young stock, commercial beef animals, pedigree show cattle and rare breeds.

    The NEW Iconic Crush has a WIDER internal width of 850mm, making it suitable for all breeds and sizes of cattle, from youngstock to commercial beef animals, pedigree show cattle to rare breeds.

    It’s framework is manufactured from a 3mm thick steel and the yoke doors are fully sheeted making it STRONGER.

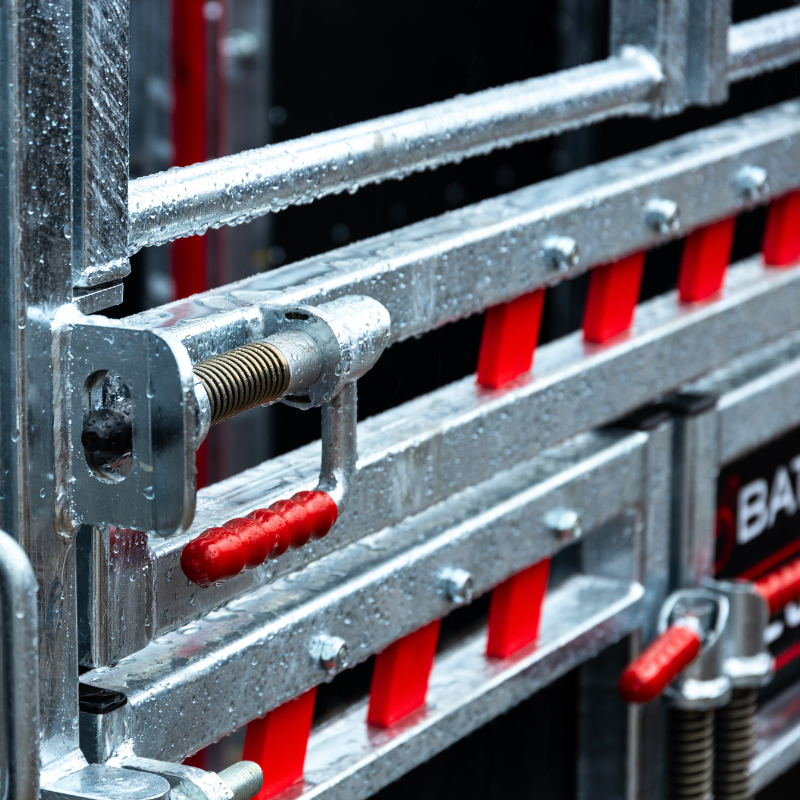

    The NEW Iconic Crush has these QUIETER key noise dampening features:
    · Polyethylene Rump Bar Fingers
    · Nylon Sliding Bolts
    · Rubber Grips, on Handles
    · Nylon Rollers on Sliding Gate
    · Nylon Bushes

    Contact us on 01233 820240 for more details.

    Reviews
    Category:

    Description

    The Iconic Cattle Crush has been two years in the design, and manufacturing process, and we believe it successfully fulfils the requirements of all cattle farmers in its ability to safely secure young stock, commercial beef animals, pedigree show cattle and rare breeds.

    FEATURES

    • 850mm- 250mm Internal Width to handle all sizes of cattle
    • Manually operated head yoke with Friction Lock mechanism to provide infinite locking
    • Dual yoke operating levers enable the yoke to be controlled from the front or rear of the crush. Both can disengage from use for safety.
    • Wheel operated squeeze mechanism with locking braked hub unit.
    • Four lower side access gates and central gate with polyethylene ratchets for backing up bar.
    • Additional row of ratchets in lower front gate
    • Top access doors.
    • TB Access doors
    • 25mm diameter nylon rotary bolts
    • Integral vet access kiosk with split doors. Doors close behind the animal in the crush to enable safe access for PD testing or similar.
    • Rear sliding gate on nylon rollers with polyethylene lower track guides to reduce noise. Part clad on both side with 6mm polypropylene sheet. Lever operated self locking latch.
    • Integral mounting brackets to attach Truest loadbars
    • 25mm thick rubber floor with plate securing battens
    • Brisket Rail fixing to RHS floor battens. Easily removed by releasing a single star knob.
    • Forklift Brackets

    SPECIFICATION

    LENGTH: 3555mm
    INTERNAL WIDTH: 850mm
    OVERALL WIDTH: 950mm
    HEIGHT: 1730mm
    WEIGHT: 1080kg
    OVERALL HEIGHT: 2620mm
    YOKE APERATURE WIDTH: 850mm to 130mm
